產品概述：
HBF系列水平葉片過濾機是一種高效、節能、自動密閉過濾的精密澄清設備。

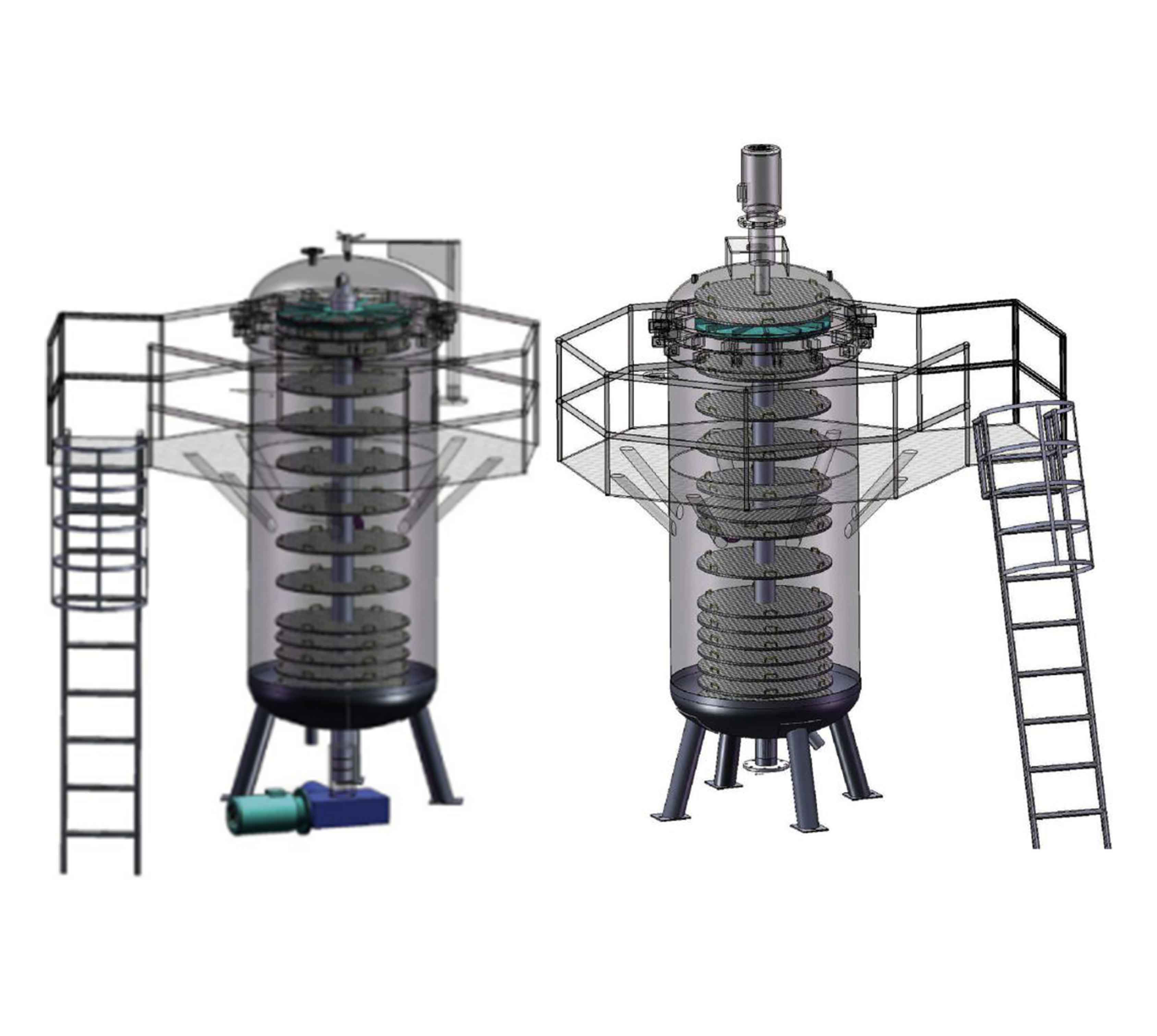

按其傳動形式可分為ZBF（上傳動）水平葉片過濾機和ZBF-H（下傳動）水平葉片過濾機兩種，同時具有以下特點：
完全密閉過濾，無泄漏，無任何環境污染。
2.濾盤水平設計濾，餅形成穩定，過濾效果好。
3.離心排渣，卸渣干凈迅速，適應多種粘稠物料的過濾和卸渣。
4.濾網清洗容易，不用拆卸，可在機體內進行。
5.占地面積小，操作方便簡單。
6.整個過濾過程可實現全自動化。
PRODUCT OVERVIEW:
HBF series vertical leaf filter is a fine clarifying filtrate equipment
with high-efficiency and energy-saving and auto hermetic.
According to its transmission type, it has ZBF vertical leaf filter and ZBF-H vertical leaf filter. It has the following advantages：
1.Fully hermetic filter, no leakage , no pollution.
2.As the leaves are designed in a horizontal disc form, cake can form stability which achieves good results.
3.The cake is spun out by centrifugal. It’s very clean and quick. That’s suitable to kinds of substance with different viscosity.
4.Filter gauze are easy to wash, and need not disassembly.
5.Small occupancy of the area , easy to operate.
6.The whole process can be achieved automatically.
ZBF型主要規格技術參數：ZBF Main Technological Parameters:
HBF-S系列水平葉片過濾設備: HBF-S series horizontal blade filtering equipment:
|
型號 Model |
過濾面積 Filter area (m2) |
葉片直徑 Blade Diameter (mm) |
工作溫度working temperature (℃) |
工作壓力 working pressure (Mpa) |
外形尺寸 Outline dimensions φ*H (mm) |
|
HBF-S-2 |
2 |
400 |
≤150 |
0.4 |
600*2000 |
|
HBF-S-5 |
5 |
600 |
800*2600 |
||
|
HBF-S-7 |
7 |
600 |
800*2900 |
||
|
HBF-S-10 |
10 |
850 |
1000*3800 |
||
|
HBF-S-12 |
12 |
850 |
1000*4000 |
||
|
HBF-S-15 |
15 |
850 |
1000*4500 |
||
|
HBF-S-20 |
20 |
1000 |
1200*5500 |
||
|
HBF-S-25 |
25 |
1000 |
1200*5800 |
||
|
HBF-S-30 |
30 |
1000 |
1200*6500 |
||
|
HBF-S-35 |
35 |
1200 |
1400*6800 |
||
|
HBF-S-40 |
40 |
1200 |
1400*7500 |
||
|
HBF-S-45 |
45 |
1200 |
1400*8200 |
||
|
HBF-S-50 |
50 |
1220 |
1400*8900 |
||
|
HBF-S-60 |
60 |
1200 |
1400*10000 |
HBF-B系列水平葉片過濾設備 HBF-B series horizontal blade filtering equipment
|
型號 Model |
過濾面積 Filter area (m2) |
葉片直徑 Blade Diameter (mm) |
工作溫度working temperature (℃) |
工作壓力 working pressure (Mpa) |
外形尺寸 Outline dimensions φ*H (mm) |
|
HBF-B-2 |
2 |
400 |
≤150 |
0.4 |
900*1480 |
|
HBF-B-5 |
5 |
600 |
1200*2050 |
||
|
HBF-B-7 |
7 |
600 |
1200*2500 |
||
|
HBF-B-10 |
10 |
850 |
1600*2900 |
||
|
HBF-B-15 |
15 |
850 |
1600*3100 |
||
|
HBF-B-20 |
20 |
850 |
1900*2950 |
||
|
HBF-B-25 |
25 |
1000 |
1900*3480 |
||
|
HBF-B-30 |
30 |
1000 |
2300*3400 |
||
|
HBF-B-35 |
35 |
1000 |
2300*3800 |
||
|
HBF-B-40 |
40 |
1200 |
2300*4100 |
||
|
HBF-B-45 |
45 |
1200 |
2300*4500 |
||
|
HBF-B-55 |
55 |
1200 |
2300*4800 |
||
|
HBF-B-65 |
65 |
1220 |
2300*5100 |
