產品概述:

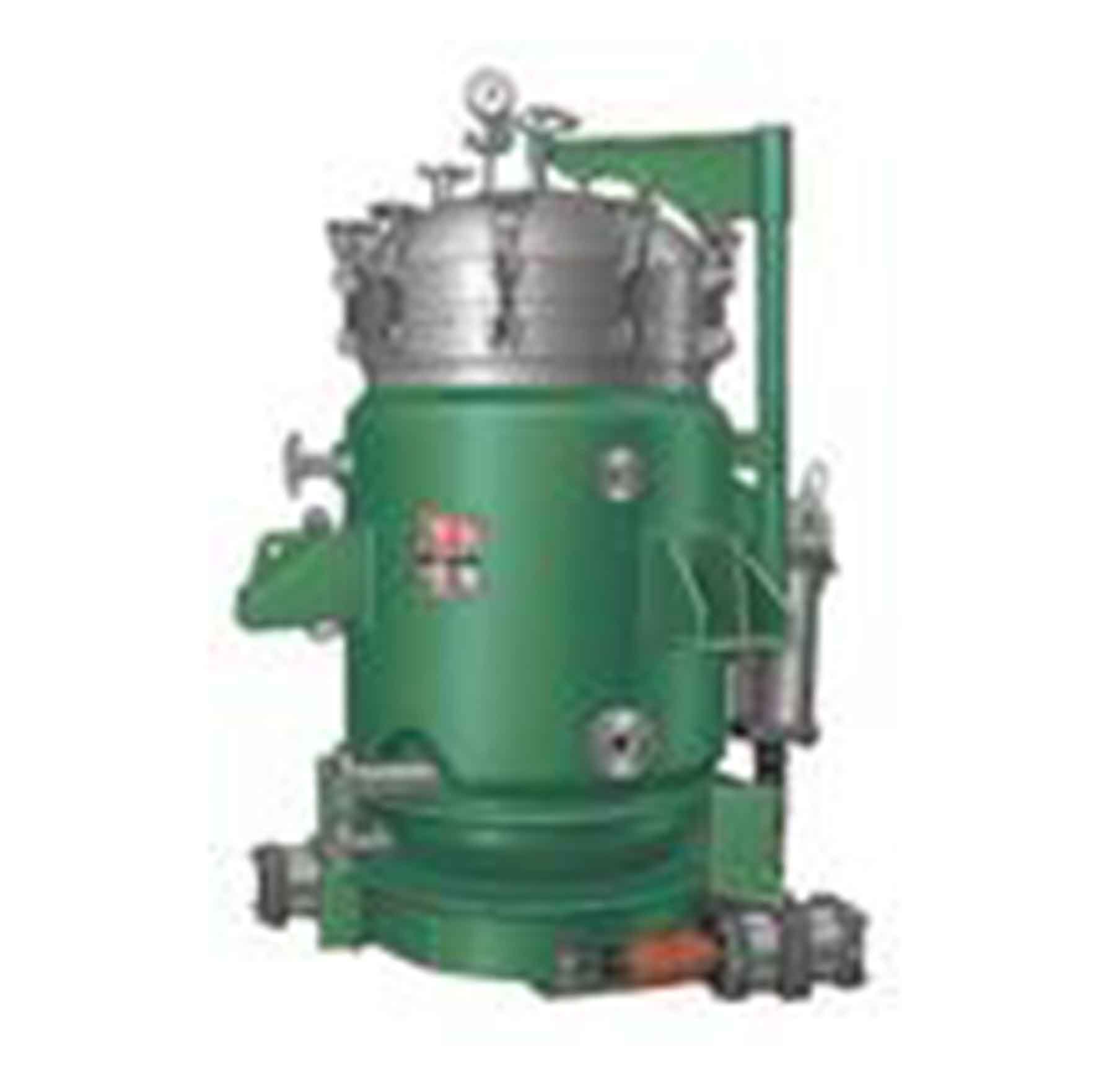

ABF 系列全自動板式密閉過濾機是一種高效、節能、全自動密閉工作的精密澄清過濾設備。它廣泛應用于化工、石油、食品、制藥等行業。由于其設備的獨特結構,它具有無與倫比的特點。
1.完全密閉過濾、無泄漏、無任何環境污染。
2.一次過濾完全澄清,過濾精度可達PPM級。
3.濾液回收完全,沒有殘液。
4.過濾不用濾紙、濾布、過濾成本十分低。
5.只要輕輕一按控制按鈕,排渣口即能自動打開,濾渣便能十分方便自動排除。
6.濾液、濾渣能共同回收。
7.與計算機聯接,整個過濾過程實現全自動化。
8.過濾溫度不受限制,操作人員少,方法簡便。
9.設備費和運行費低廉,維護和保養十分方便。
10.該設備達到國際同類先進產品水平。
PRODUCT OVERVIEW:

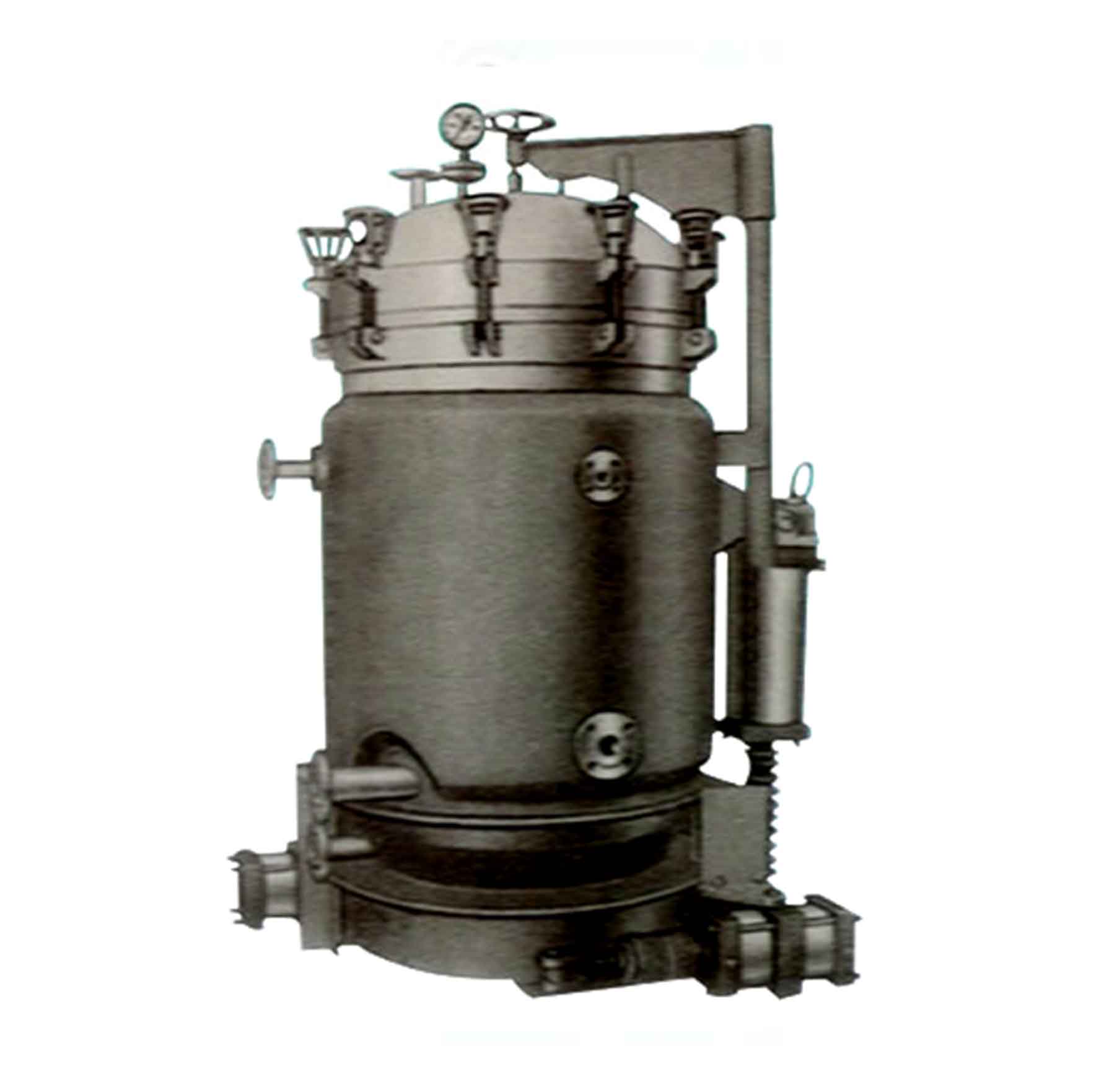

ABF series automatic plate type hermetic filter is the fine clarifying and filtering equipment with high-efficiency and energy-saving. It is widely used in chemical,petroleum,food and pharmaceutical industry. With its unique structure, it has incomparable advantages.
1.Fully hermetic filtering operation, no leakage, no pollution.
2.Once filtering complete clarified, it filtering precision up to PPM.
3.Low filtration cost, and no need of filter paper and filer cloth.
4.Complete recovery, without residual filtrate.
5.The residue is easy to be automatically discharged, only pressing a controlled button.
6.Recovery the filtrate and the filtering residues together.
7.Combined with a computer, the whole filtering process are completely automatic.
8.No limit of the filtering temperature, less labor force and easy to operate.
9.Less cost of production, and easy to repair and maintain.
10.The equipment had reached the advance level in the world.
技術參數:TECHNICAL DATA:
型號 Model |
過濾面積 Filtration Area (㎡) |
處理能力(T/h) Treatment Capacity |
工作壓力(Mpa) Work pessure |
過濾缸容積 Machine Volune (L) |
重量 Weight (kg) |
外形尺寸 Outline dimension 長×寬×高 (mm) |
|||
食品 Food |
石化 Petroch emistry |
油脂 Oil |
額定壓力Rated Pressure |
最高壓力 Max Pressure |
|||||
ABF-5 |
5 |
2-3 |
2-5 |
1-1.2 |
0.1-0.4
|
0.5
|
600 |
2100 |
1500×1300×1950 |
ABF-7 |
7 |
4-6 |
5-7 |
1.4-2 |
780 |
2500 |
1600×1400×2000 |
||
ABF-10 |
10 |
6-8 |
7-9 |
2-3 |
1200 |
2800 |
1700×1500×2320 |
||
ABF-15 |
15 |
9-12 |
11-13 |
3-5 |
2000 |
3800 |
2050×2100×1900 |
||
ABF-20 |
20 |
12-16 |
15-17 |
5-7 |
2200 |
4200 |
2050×2100×2200 |
||
ABF-25 |
25 |
15-20 |
19-21 |
7-9 |
2500 |
4500 |
2050×2100×2600 |
||
ABF-30 |
30 |
18-24 |
23-25 |
9-11 |
4700 |
5800 |
2600×2500×3600 |
||
ABF-35 |
35 |
21-27 |
27-29 |
11-13 |
4900 |
6500 |
2600×2500×3800 |
