產品概述：

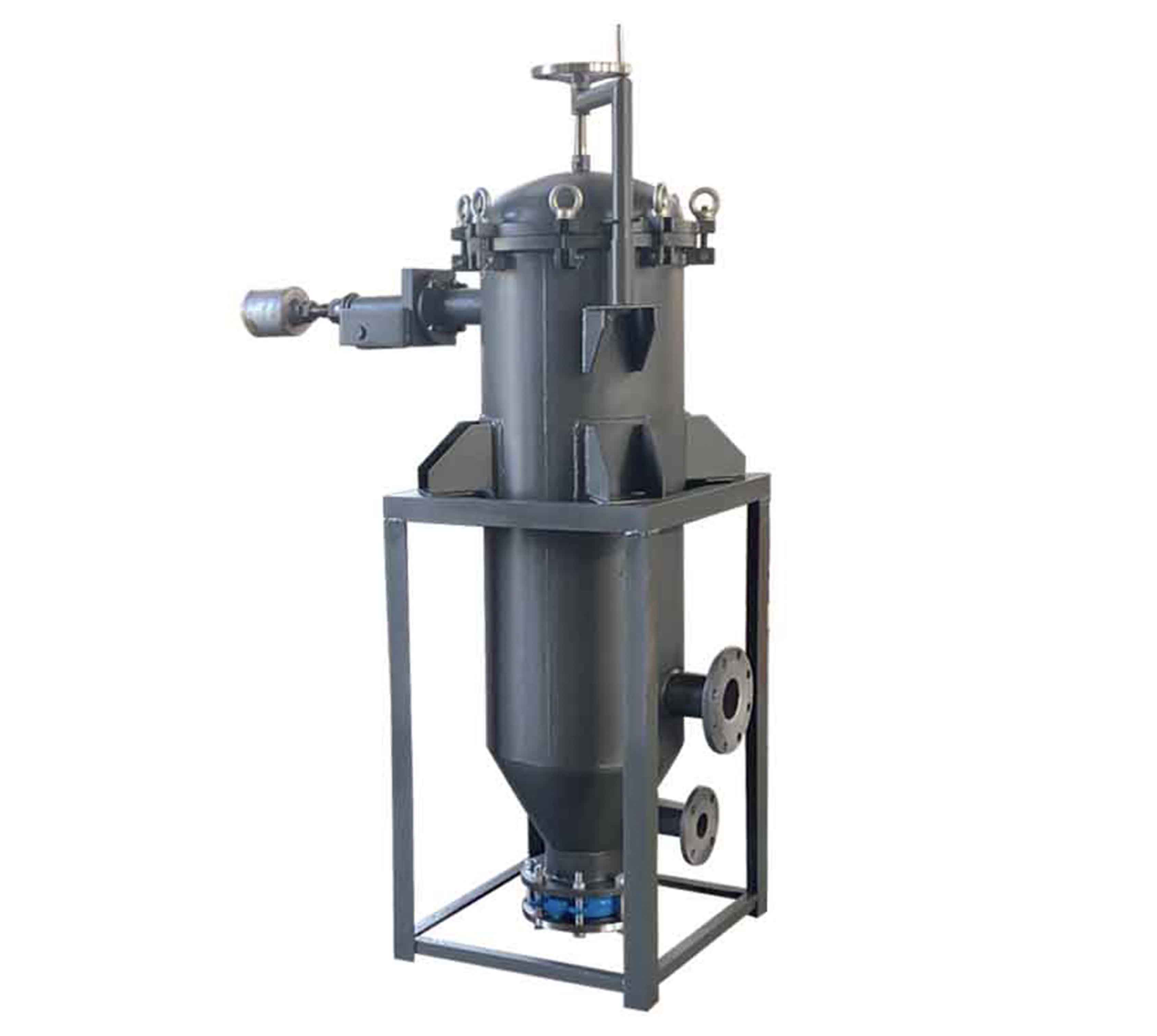

GBF系列高效板式密閉過濾機是一種高效、節能、密閉操作的精密澄清過濾設備，它廣泛試用于化工、油脂、石油、涂料、食品、制藥等行業。該產品設計結構獨特，體積小，過濾效率高、液體透明度高、細度好，無物料損耗，不消耗濾紙、濾布或濾芯等，因此過濾成本很低，設備操作、維護、清理方便。
PRODUCT OVERVIEW:
GBF High Efficiency Plate Type Hermetic Filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum,painting,foodstuff,pharmace utical and many other industries . Since this equipment has many advantages such as unique structure,compact volume, high filter efficiency fineness of filtered liquor , no material wastage , without consumption of filter paper, filter cloth. It’s only consuming small quantity of filter aid. It can be conveniently maintained, cleaned and operated at very low cost.
主要結構和工作原理：
過濾機主體是由殼體、過濾板、起蓋結構、自動排渣裝置等組成，其中過濾板是由多層不銹鋼濾材組成，安裝在中心集液管上，拆裝清洗十分方便。
過濾時，含助濾劑的待濾液通過輸送系統進入濾機，使過濾網上形成穩定的濾餅（濾餅層可提供無數的細微通道）后，待濾液即經濾餅層微孔進行實際過濾。
Main structure and working principle:
The mian body of the filter is made up of vessel,filter gauzes, lifting structure and automatic discharging device. Filter gauzes are made by material of multilayer stainless steel which installed at center liquid pipe and cleaned up conveniently . In the process of filtration, the unfiltered liquid with filter aid come into the body through transmission system （pump or other tools ）. After a stable filter cake formed on the filter gauze flakes, the filtrate are filtered through the micropores of filter cake.
適用范圍（主要用途）：
◆ 油脂：原油、漂土、氫化油、冬化油、硬脂、脂肪酸等。
◆ 石油化工產品：柴油、潤滑油、石蠟、礦物油產品等。
◆ 飲料： 啤酒、果汁、酒類、牛奶等。
◆ 有機化學品：各種有機酸、醇、苯、醛等。
◆ 油漆和清漆：樹脂類、清漆、染料、真漆等。
◆ 無機化學品：溴水、氰化鉀、氟石等。
◆ 食品： 明膠、醋、淀粉、糖汁、甜水等。
◆ 醫藥： 雙氧水、維生素等。
◆ 礦產： 煤屑、煤渣等。
◆ 其他：空氣、水的凈化等。
APPLICABLE SCOPE：
◆ Oil industry: crude oil, bleached soil, hydrided oil, radonized oil, stearin,fatty acid,etc.
◆ Petroleum chenical products: diesel oil, lubricating oil, paraffin wax, mineral oil, etc.
◆ Beverage: beer,juice, wine, milk,etc.
◆ Organic chemical products: various organic aid, alcohol, benzene,aldehyde,etc.
◆ Paint: resin,vanish,dye,lacquer,etc.
◆ Inorganic chemical products: bromine water, potassium cyanide, fluorite,etc.
◆ Foodstuff: gelartin, vinegar, starch, syrup, sugar water, etc.
◆ Pharmaceutical products: hydrogen peroxide solution, vitamin,etc.
◆ Mineral products: fine coal, cinder, etc.
◆ Others: air,depuration of water, etc.
技術參數：TECHNICAL DATA：
|
型號 Model |
過濾面積 Filtration area (㎡) |
濾餅體積 Fiter cake Volume (L) |
處理能力（T/h） Treatment Capacity |
工作壓力（Mpa） Work pessure |
工作溫度 Work Temperature (℃) |
過濾缸容積 Machine Volune (L) |
主機重量 Machine Weight (kg) |
|||
|
油脂 oil |
樹脂 Resin |
飲料 Bevetage |
額定壓力Rated Pressure |
最高壓力 Max Pressure |
||||||
|
GBF-2 |
2 |
30 |
0.4-0.6 |
1-1.5 |
1-3 |
0.1-0.4 |
0.5 |
≤150 |
120 |
300 |
|
GBF-4 |
4 |
60 |
0.5-1.2 |
2-3 |
2-5 |
250 |
400 |
|||
|
GBF-7 |
7 |
105 |
1-1.8 |
3-6 |
4-7 |
420 |
600 |
|||
|
GBF-10 |
10 |
150 |
1.6-3 |
5-8 |
6-9 |
800 |
900 |
|||
|
GBF-12 |
12 |
240 |
2-4 |
6-9 |
8-11 |
1000 |
1100 |
|||
|
GBF-15 |
1 5 |
300 |
3-5 |
7-12 |
10-13 |
1300 |
1300 |
|||
|
GBF-20 |
20 |
400 |
4-6 |
9-15 |
12-17 |
1680 |
1700 |
|||
|
GBF-25 |
25 |
500 |
5-7 |
12-19 |
16-21 |
1900 |
2000 |
|||
|
GBF-30 |
30 |
600 |
6-8 |
14-23 |
19-25 |
2300 |
2500 |
|||
|
GBF-36 |
36 |
720 |
7-9 |
16-27 |
23-31 |
2650 |
3000 |
|||
|
GBF-40 |
40 |
800 |
8-11 |
21-34 |
30-38 |
2900 |
3200 |
|||
|
GBF-45 |
45 |
900 |
9-13 |
24-39 |
36-44 |
3200 |
3500 |
|||
|
GBF-52 |
52 |
1040 |
10-15 |
27-45 |
42-51 |
3800 |
4000 |
|||
|
GBF-60 |
60 |
1200 |
11-17 |
30-32 |
48-60 |
4500 |
4500 |
|||
|
GBF-70 |
70 |
1400 |
12-19 |
36-60 |
56-68 |
5800 |
5500 |
|||
|
GBF-80 |
80 |
1600 |
13-21 |
40-68 |
64-78 |
7200 |
6000 |
|||
|
GBF-90 |
90 |
1800 |
14-23 |
43-72 |
68-82 |
7700 |
6500 |
|||
過濾機主機外形及安裝尺寸：Outline form and Assembly size of Filter:
|
型號 Model |
筒體直徑 Shell diameter |
濾片間距 Spece between Filter Cake |
進出口 Inlet/outlet Caliber |
溢流口 Overflow Port |
排渣口 Discharge Port |
高度 Height |
占地面積 Floor Space |
|
GBF-2 |
Φ400 |
50 |
DN25 |
DN25 |
DN150 |
1550 |
620×600
|
|
GBF-4 |
Φ500 |
50 |
DN40 |
DN25 |
DN200 |
1800 |
770×740 |
|
GBF-7 |
Φ600 |
50 |
DN40 |
DN25 |
DN250 |
2200 |
1310×1000 |
|
GBF-10 |
Φ800 |
70 |
DN50 |
DN25 |
DN300 |
2400 |
1510×1060 |
|
GBF-12 |
Φ900 |
70 |
DN50 |
DN40 |
DN400 |
2500 |
1610×1250 |
|
GBF-15 |
Φ1000 |
70 |
DN50 |
DN40 |
DN400 |
2650 |
1710×1350 |
|
GBF-20 |
Φ1000 |
70 |
DN50 |
DN40 |
DN400 |
2950 |
1710×1350 |
|
GBF-25 |
Φ1100 |
70 |
DN50 |
DN40 |
DN500 |
3020 |
1810×1430 |
|
GBF-30 |
Φ1200 |
70 |
DN50 |
DN40 |
DN500 |
3150 |
2030×1550 |
|
GBF-36 |
Φ1200 |
70 |
DN65 |
DN50 |
DN500 |
3250 |
2030×1550 |
|
GBF-40 |
Φ1300 |
70 |
DN65 |
DN50 |
DN600 |
3350 |
2130×1560 |
|
GBF-45 |
Φ1300 |
70 |
DN65 |
DN50 |
DN600 |
3550 |
2130×1560 |
|
GBF-52 |
Φ1400 |
75 |
DN80 |
DN50 |
DN600 |
3670 |
2230×1650 |
|
GBF-60 |
Φ1500 |
75 |
DN80 |
DN50 |
DN600 |
3810 |
2310×1750 |
|
GBF-70 |
Φ1600 |
80 |
DN80 |
DN50 |
DN600 |
4500 |
3050×1950 |
|
GBF-80 |
Φ1750 |
80 |
DN80 |
DN50 |
DN600 |
4500 |
3210×2100 |
|
GBF-90 |
Φ1850 |
80 |
DN80 |
DN50 |
DN600 |
4650 |
3300×2200 |
注：處理能力：油脂類指含2-5%白土的油類澄清過濾；樹脂類指對醇酸樹脂過濾細度在5-10μm時的平均過濾量，過濾能力與被過濾介質的含雜量有關。
Note: filtering capability:when oil is treated, it means the filtered volume of oils containing2-5% of whitish soil. When resin is treated, it means the average filtered volume of alkyd resin fineness of 5-10μm. Filtering capability is in relation to the impurity content of the medium to be filtered.
