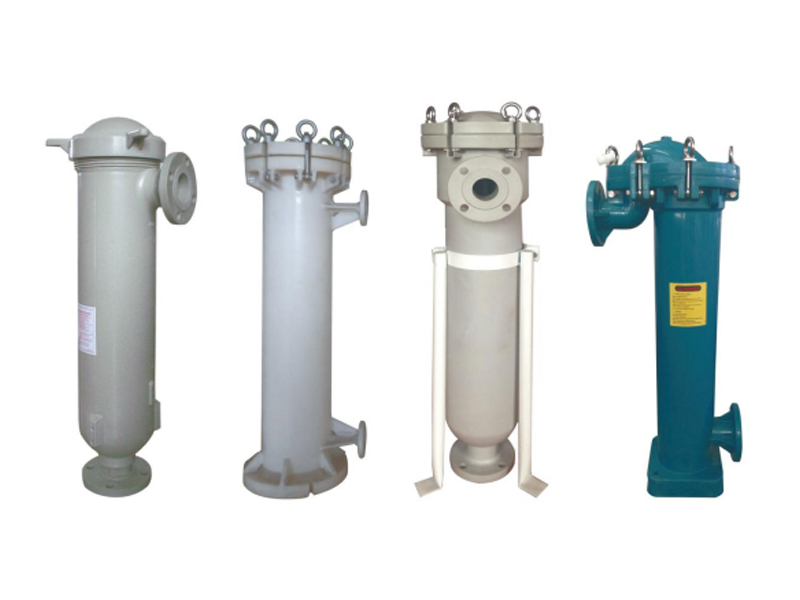

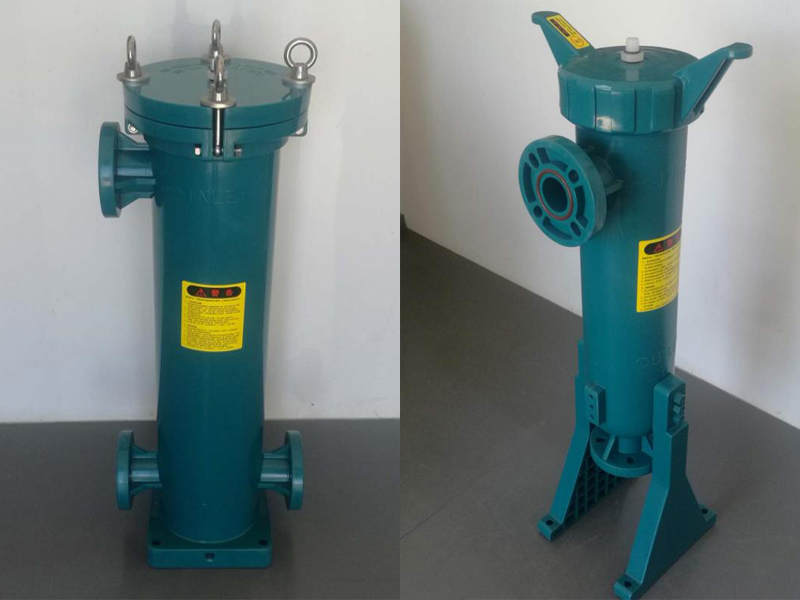

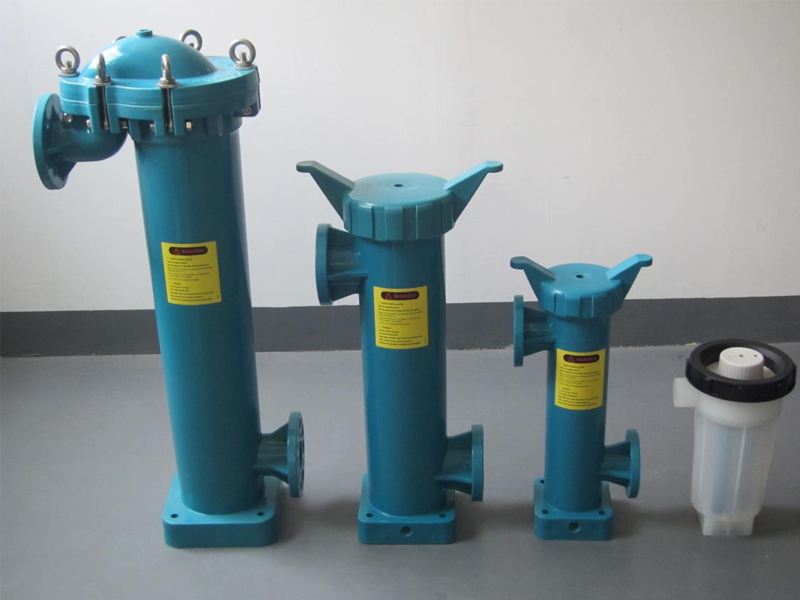

產品概述：
◆材質：聚丙烯（PP)
◆接口形式：法蘭
◆密封材料：丁晴密封圈、氟膠密封圈
◆密封形式：O型密封圈
◆適用濾袋：2號濾袋
◆設計壓力：0.3Mpa
◆最高工作溫度：80℃
◆設計流量：20-40m3/H
◆濾殼內面平滑處理，無溝縫，無死角，清洗方便
◆適用于腐蝕性較強的場合
PRODUCT OVERVIEW:
◆Material:polypropylene(PP)
◆Connection:type:flange
◆Seal material:BUNA、VITON
◆Sealtype:O-type seal ring
◆Apply to a strainer:2# filter bags
◆Design pressure:0.3Mpa
◆Max working temperature:80℃
◆Design flow:20-40m3/H
◆The inner-side is very smooth,no ditch, no dead angle, easy to wash
◆Suitable for the occasion of strong corrosive
技術參數：TECHNICAL DATA:
|
Model Style 型號樣式 Technical data 技術參數 |
材質 Material |
設計壓力 Design pressure (MPa) |
設計溫度 Design temperature (℃) |
進出口徑 Inlet/Outlet (DN) |
濾袋尺寸 Filter bag size (mm) |
濾袋容積 Filter bag volume (L) |
過濾面積 Filter area (m2) |
過濾精度 Micron size (um) |
最大流量 Maximum flow rate (m3/h) |
濾袋數量 Filter bagQty. (ps) |
|
RH159PPR-M |
PP |
0.6 |
5-65 |
DN50 |
?150*520 |
8 |
0.23 |
1-1000 |
23 |
1 |
|
RH219PP-H |
PP |
0.6 |
5-65 |
DN50 |
?180*810 |
18 |
0.50 |
1-1000 |
40 |
1 |
|
RH200PP-M |
PP |
0.6 |
5-65 |
DN50 |
?180*810 |
18 |
0.50 |
1-1000 |
40 |
1 |
|
RH219PPR-M |
PPR |
0.8 |
80 |
DN65 |
?180*810 |
18 |
0.50 |
1-1000 |
40 |
1 |
