產品概述：
適用范圍：精細化工、塑料、燃料、電鍍、油脂、潤滑油、陶瓷、玻璃、氯堿工業、制藥等行業的過濾、吸附和貴金屬催化劑、沸石等固體的回收。

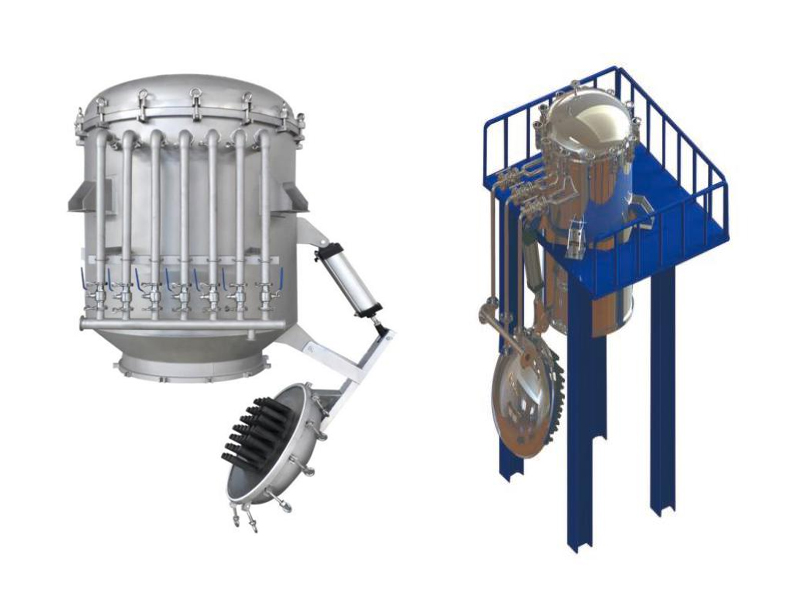

產品簡介：PHZS-B系列自清式濾芯過濾機是一種高效、節能自動密閉過濾的精密澄清設備。
具有以下特點：
1.完全密閉過濾，無泄漏，無任何環境污染。
2.濾芯設計采用復式結構，應用領域廣，過濾效果好。
3.能實現一次性完全過濾。
4.慮餅可進行洗滌、干燥，以獲得最大的經濟效益。
5.采用氣體反吹排渣，排渣干凈迅速，適應多種粘稠物料。
6.整個過濾過程可實現全自動化。
PRODUCT OVERVIEW:
The filtration，adsorption and solid recovery of metal catalyzer，zeolite etc，in the industries of fine chemical，plastic，fuel，electricity，grease，lubricant，porcelain，glass，alkali etc.
Product introduction:PHZS-B Series Self-Clean Filtering Core Filter is a kind of clarifying separation equipment with high-efficiency，energy-saving and enclosed operation.
It has traits as follows:
1.Completely enclosed filtration，no leakage，no pollution.
2.The filtering core adopts component structure which can be used widely and excellent filtering effect.
3.It can achieve thoroughly filtration one time.
4.Filter cake can be washed and dried and it can achieve the best economical benefit.
5.Adopting air blowing in reverse to discharge the residue which is rapid and clean，and also used in various sticky materials.
6.The whole process can achieve completely full-Automatization.
技術參數：TECHNICAL DATA：
|
型 號 (Model) |
RHZS-B-1 |
RHZS-B-3 |
RHZS-B-5 |
RHZS-B-8 |
RHZS-B-10 |
RHZS-B-20 |
RHZS-B-30 |
RHZS-B-40 |
RHZS-B-60 |
RHZS-B-80 |
RHZS-B-100 |
|
機體材質 Body material |
304/316L/Q235 內襯PO、橡膠、PTFE |
||||||||||
|
過濾面積(㎡) |
1 |
3 |
5 |
8 |
10 |
20 |
30 |
40 |
60 |
80 |
100 |
|
處理能力 (m3) |
根據具體物料的實驗數據確定 |
||||||||||
|
工作壓力(Mpa) |
≤0.25 |
||||||||||
|
工作溫度(℃) |
≤110 |
||||||||||
|
機體直徑 |
350 |
600 |
800 |
1000 |
1200 |
1600 |
1600 |
1600 |
2000 |
2200 |
2200 |
|
濾餅體積 (m3) |
0.06 |
0.06 |
0.1 |
0.16 |
0.2 |
0.4 |
0.6 |
0.8 |
1.2 |
1.6 |
2 |
|
進出口徑 |
DN25 |
DN25 |
DN32 |
DN40 |
DN40 |
DN65 |
DN65 |
DN65 |
DN65 |
DN65 |
DN65 |
|
排渣口徑 |
DN150 |
DN300 |
DN550 |
DN550 |
DN800 |
DN1000 |
DN1000 |
DN1000 |
DN1400 |
DN1600 |
DN1600 |
