產品概述：

適用范圍：精細化工、塑料、燃料、電鍍、油脂、潤滑油、陶瓷、玻璃、氯堿工業、制藥等行業的過濾、吸附和貴金屬催化劑、沸石等固體的回收。

產品簡介：RHZS-A系列微孔過濾機是一種高效、節能自動密閉過濾的精密澄清設備。

具有以下特點：

1、完全密閉過濾，無泄漏，無任何環境污染。

2、濾芯設計采用復式結構，應用領域廣，過濾效果好。

3、能實現一次性完全過濾。

4、慮餅可進行洗滌、干燥，以獲得較大的經濟效益。

5、采用氣體反吹排渣，排渣干凈迅速，適應多種粘稠物料。

6、整個過濾過程可實現全自動化。

PRODUCT OVERVIEW:

The filtration，adsorption and solid recovery of metal catalyzer，zeolite etc，in the industries of fine chemical，plastic，fuel，electricity，grease，lubricant，porcelain，glass，alkali etc.

Product introduction:RHZS-A Series Microporous Filter is a kind of clarifying separation equipment with high-efficiency，energy-saving and enclosed operation.

It has traits as follows:

1.Completely enclosed filtration，no leakage，no pollution.

2.The filtering core adopts component structure which can be used widely and excellent filtering effect.

3.It can achieve thoroughly filtration one time.

4.Filter cake can be washed and dried and it can achieve the best economical benefit.

5.Adopting air blowing in reverse to discharge the residue which is rapid and clean，and also used in various sticky materials.

6.The whole process can achieve completely full-Automatization.

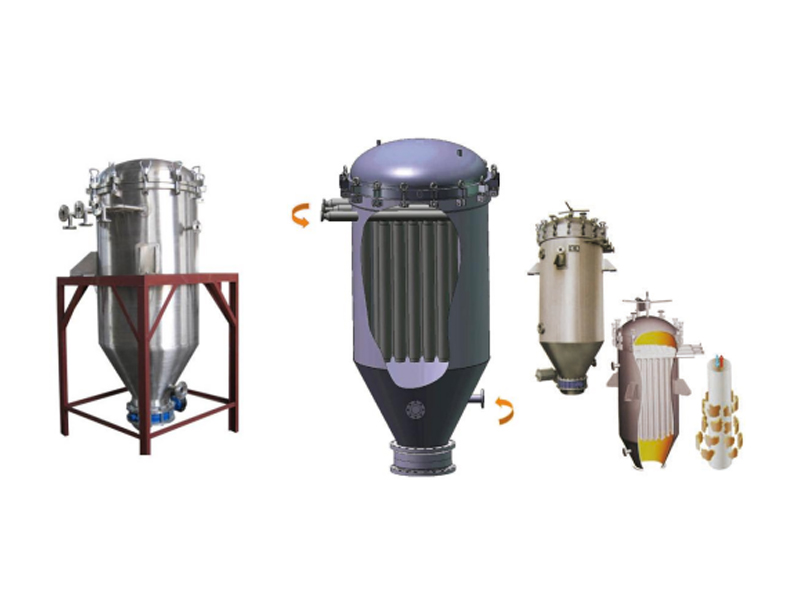

工作原理：

RHZS燭式過濾器（又叫微孔過濾器）在一密閉的容器里，由多件微孔濾芯組合，（或在濾芯外套上濾布和其他過濾介質），過濾時用泵將料漿送入過濾器內，料漿中的液體穿過過濾介質進入多孔濾芯的中心匯總到清液出口排除，在燭式過濾器未形成前，排除的“清液”再回到原料漿進口再次送至過濾器作循環過濾，直至燭式過濾器形成（能達到過濾要求），提供一信號控制清液不再循環，清液通過三通閥送至下道工序使用，進行正常過濾。

正常過濾一段時間后，當多孔燭芯上濾餅達到一定厚度時，提供一信號控制進料（停止），然后排凈過濾器內的殘液，排凈后提供一信號控制反吹口（壓縮空氣、氮氣和飽和蒸汽）進行反吹，使濾餅脫落，反吹一定時間后，停止反吹，提供一信號打開過濾器排渣口進行排渣，排渣結束后關閉排渣口，回到過濾前初始狀態，準備進行下一輪過濾。

Working principle:

Candle filter (also called microporous filter) in a closed container , combine by many pieces microporous filter cartridges , (or cover clothes outside the filter cartridges and filter medium ), when filtering we should send the slurry intothe filter with the pump , the liquid of the slurry through the filter medium into the center of the multihole filter cartridges , then collect them to discharge form the outlet port of the clear liquid , befor the formation of the candle filte , the discharge“clear liquid"return to the raw material slurry inlet port then resend to filter as cycle filtering , until the candle filter formed (can meet the filter requirements), provides a signal and the control solution no longer cycle , clear liquid through the three - port valve to the use of next working procedure ,then for normal filtering.

Normal filtering after a period of time , when the filter cake on the multihole filter cartridges reaches a certain thickness , will provide a signal control then the feed (stop), then emptying the residual liquid which inside the filter , after that provides a signal control the blowback port(compressed air , nitrogen or ssaturated steam) to process blowing back , make the cake fall off , after a certain time , stop blowing , provides a signa to open the port for discharge , after the discharge close the discharge port , back to the initial state before filtering , ready for the next round of filtering

技術參數：TECHNICAL DATA：
