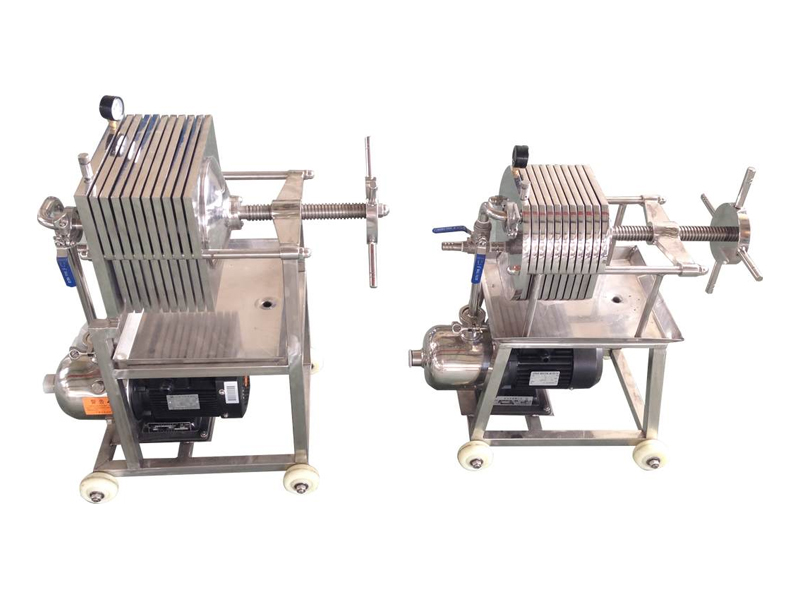

應用：用于各種浮液的固液分離，適用范圍廣，應用于醫藥、化工、食品、環保、水處理、電子、紡織、電鍍等相關行業。
工作原理：
懸浮液用泵送入濾機每個密閉的濾室，在壓力的作用下，濾液透過濾層及濾膜和其他濾材，經膜口排除，濾渣則留在板框內形成濾餅，從而達到固液分離的目的。
Application:Use for solid-liquid separation of various floats, it is widely used in many industries,as Medical、Chemical industry、foodstuff、environment protection、Water treatment、Electronics、Textile、Electroplate and other relative industries.
Work principle:Suspensions will be put into the hermetic straining chamber by pump，at the function of the press，Suspension will flow through the filter layer，filter membrane and other filter materials，flow out through the filter membrane then，the filter residue will be left and become filter cake in the sheet frame，so Purpose for the solid-liquid separation will be come true.
技術參數：TECHNICAL DATA：
|
規格型號 Model |
濾板層數 Filter QTY |
過濾面積 Filtration Area(m2) |
濾材尺寸 Filter Size(mm) |
濾膜孔徑 Filter Aperture(um) |
過濾壓力 Filtering Pressure(Mpa) |
水流量 Flow(t/h) |
電機功率 Motor Power(Kw) |
外形尺寸 Dimension(mm) |
進口 Inlet (?mm) |
出口 Outlet (?mm) |
|
CR100-10 |
10 |
0.078 |
?100 |
0.8 |
0.15 |
0.80 |
0.55 |
600*300*600 |
15 |
15 |
|
CR150-10 |
10 |
0.170 |
?150 |
0.8 |
0.15 |
1.50 |
0.55 |
650*380*600 |
20 |
15 |
|
CR200-10 |
10 |
0.340 |
?200 |
0.8 |
0.15 |
2.00 |
0.55 |
650*400*650 |
20 |
15 |
|
CR300-10 |
10 |
0.700 |
?300 |
0.8 |
0.20 |
4.00 |
1.10 |
700*500*800 |
25 |
20 |
|
CR300-20 |
20 |
1.400 |
?300 |
0.8 |
0.20 |
8.00 |
1.10 |
800*500*800 |
38 |
25 |
|
CR300-30 |
30 |
2.100 |
?300 |
0.8 |
0.20 |
10.00 |
1.10 |
900*500*800 |
38 |
25 |
|
CR400-10 |
10 |
1.250 |
?400 |
0.8 |
0.20 |
6.00 |
1.10 |
900*600*1000 |
38 |
25 |
|
CR400-16 |
16 |
2.000 |
?400 |
0.8 |
0.20 |
9.00 |
1.50 |
1000*600*1000 |
38 |
25 |
|
CR400-20 |
20 |
2.500 |
?400 |
0.8 |
0.20 |
10.00 |
1.50 |
1100*600*1000 |
38 |
25 |
|
CR400-24 |
24 |
3.000 |
?400 |
0.8 |
0.30 |
12.00 |
2.20 |
1200*600*1000 |
38 |
25 |
|
CR400-30 |
30 |
3.800 |
?400 |
0.8 |
0.30 |
16.00 |
2.20 |
1300*600*1000 |
45 |
25 |
|
CR400-32 |
32 |
4.000 |
?400 |
0.8 |
0.30 |
18.00 |
2.20 |
1320*600*1000 |
45 |
25 |
|
BAS200-10 |
10 |
0.400 |
200*200 |
0.8 |
0.15 |
3.00 |
1.10 |
650*380*650 |
15 |
15 |
|
BAS300-10 |
10 |
0.900 |
300*300 |
0.8 |
0.15 |
6.00 |
1.10 |
700*500*800 |
20 |
15 |
|
BAS400-10 |
10 |
2.000 |
400*400 |
0.8 |
0.15 |
10.00 |
1.50 |
900*600*1000 |
20 |
15 |
|
BAS400-20 |
20 |
3.000 |
400*400 |
0.8 |
0.15 |
12.00 |
2.20 |
1100*600*1000 |
25 |
20 |
|
BAS400-26 |
26 |
4.000 |
400*400 |
0.8 |
0.20 |
15.00 |
2.20 |
1150*600*1000 |
38 |
25 |
|
BAS400-32 |
32 |
5.000 |
400*400 |
0.8 |
0.20 |
18.00 |
2.20 |
1200*600*1000 |
38 |
25 |
|
BAS400-38 |
38 |
6.000 |
400*400 |
0.8 |
0.30 |
21.00 |
2.20 |
1300*600*1000 |
38 |
25 |
|
BAS400-44 |
44 |
7.000 |
400*400 |
0.8 |
0.30 |
24.00 |
3.00 |
1360*600*1000 |
38 |
25 |
