產品簡介:
PA/PE燒結濾芯(即PA濾芯,PAC濾芯,PA脫碳濾芯)采用超高子聚乙烯和炭纖維為主要原料,材質符合GMP,F(xiàn)DA要求。每根濾芯出廠前都接受氣泡均勻度測試,確保微孔分布均勻。
產品特點:
1、在生產過程中不使用粘合劑,具有廣泛的化學兼容。PA燒結濾芯經科學配方高溫?zé)Y(jié)而成, 具有良好的機械性能。
2、濾芯孔徑內外相同,過濾層厚,工作壓力高時,也能保證過濾效果。產品微粒粘結牢固,不易脫落。
3、生產大型水處理設備,可采用自動或手動反沖脫渣法,固體微?;厥湛刹捎酶沙鲈恍杞?jīng)常更換濾芯,可自動化操作, 過濾成本低等優點。
Product introduction:

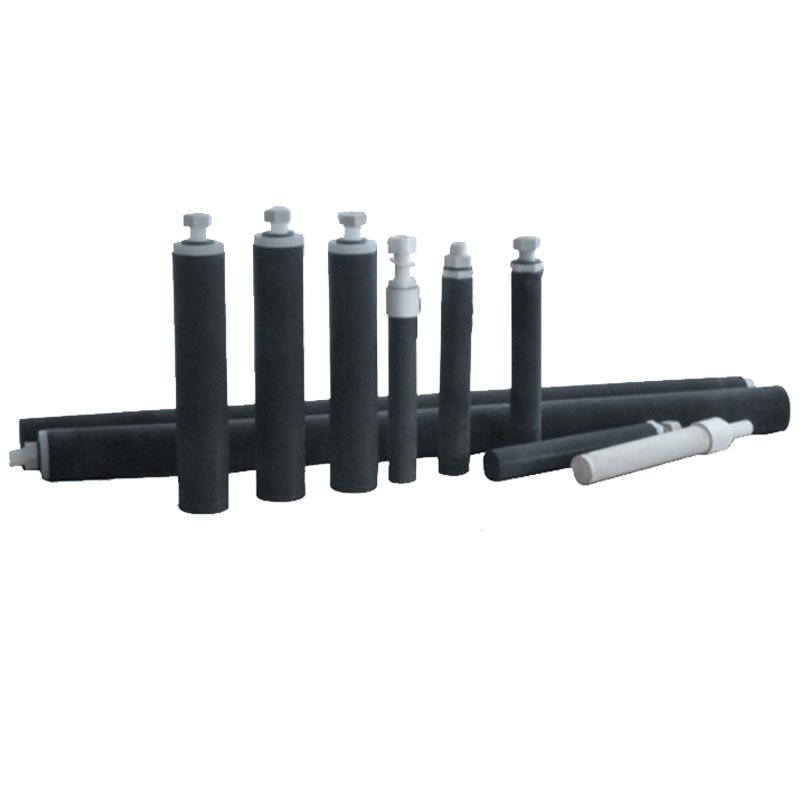

PA / PE sintered filter core (i. E. PA filter core, PAC filter core, PA decarbonization filter core) uses ultra-high molecular polyethylene and carbon fiber as the main raw materials, the material conforms to GMP, FDA requirements. Each filter element is subjected to bubble uniformity test before leaving factory to ensure uniform distribution of micropores.
Product features:
1, in the production process does not use adhesives, has a wide range of chemical compatibility. PA sintered filter core is made by scientific formula and sintered at high temperature and has good mechanical properties.
2, the filter core inside and outside is the same, the filter layer is thick, the working pressure is high, also can guarantee the filtering effect. The product particles are firmly bonded and are not easy to fall off.
3, the production of large water treatment equipment, automatic or manual recoil slag removal method, solid particle recovery can be used dry slag, without regular replacement of filter core, automatic operation, low filtration cost and so on.
技術參數:TECHNNICAL DATA:
RH-PA/PE-OD*ID*L-P-I
直徑(OD) mm |
內徑(ID) MM |
長度(L) mm |
精度(P) um |
接口 (I) |
Φ31 |
Φ20 |
200、500、1000、2000 (2米內任意長度) |
0.22um、0.5、1um、5um、10um、20um、50um、100um |
M20、M22 |
Φ38 |
Φ20 |
200、500、1000、2000 (2米內任意長度) |
0.22um、0.5、1um、5um、10um、20um、50um、100um |
M20、M22 |
Φ50 |
Φ20、Φ30、Φ37 |
200、500、1000 (1米內任意長度) |
0.22um、0.5、1um、5um、10um、20um、50um、100um |
M20、M22、M25、G3/4 |
Φ62 |
Φ30、Φ40、Φ44 |
200、500、1000 (1米內任意長度) |
0.22um、0.5、1um、5um、10um、20um、50um、100um |
M30、M36、222、226 |
Φ68 |
Φ30、Φ40、Φ44 |
200、500、1000 (1米內任意長度) |
0.22um、0.5、1um、5um、10um、20um、50um、100um |
M30、M36、222、226 |
Φ100 |
Φ85 |
500、1000 (1米內任意長度) |
0.22um、0.5、1um、5um、10um、20um、50um、100um |
兩頭通DO |
Φ150 |
Φ125 |
500、1000 (1米內任意長度) |
0.22um、0.5、1um、5um、10um、20um、50um、100um |
兩頭通DO |
